TECHNICAL SPECIFICATIONS

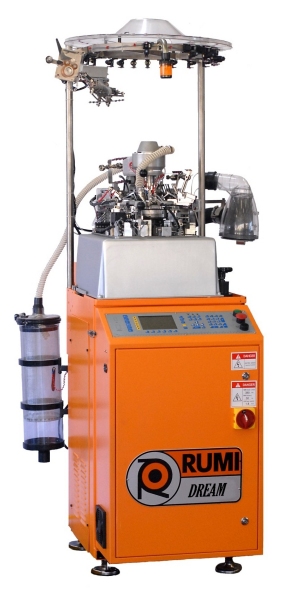

Single cylinder 1 feed machine
8 yarn fingers for the main feed, 7 of them have adjustable command for the second position
5 groups for the pattern formation linked to 3 yarn fingers
1 group for the lastex formation linked to 2 independent yarn fingers
1 group for the reinforced yarn linked to 2 supplementary yarn fingers
2 sinkers selection groups with 4 levels to make socks in selected terry all over the sock.
8 selection groups needle by needle plus 1 group of re-selection color-color and color- ground.
Heel and toe stitch cam with independent registration through step by step motors.
Electronic adjustment of elastic feeder.
Control for the recovery of 4 independent heel yarn
Increase of the speed in the heel and toe phases through an increase and decrease of the needles
Cylinder and dial are moved by independent co-axial motors.
Possibility to change the dial high compared to sinkers level.
The system deals and controls with the maximum precision both motors, so creating the ideal synchronism of both phases of the edge loading and unloading.
The cutter saw speed can be varied in order to obtain the best length of the yarns cut.
The sinker cover is power-assisted in any phase of the sock cycle.
Electronic panel with the possibility to store a full range of sock models and patterns.
Possibility to save the socks in any electricity breakdown.
Possibility to do the automatic zeroing in any phase of the cycle
Electronic control of each raising cams through sensor
PERFORMANCE SPECIFICATIONS

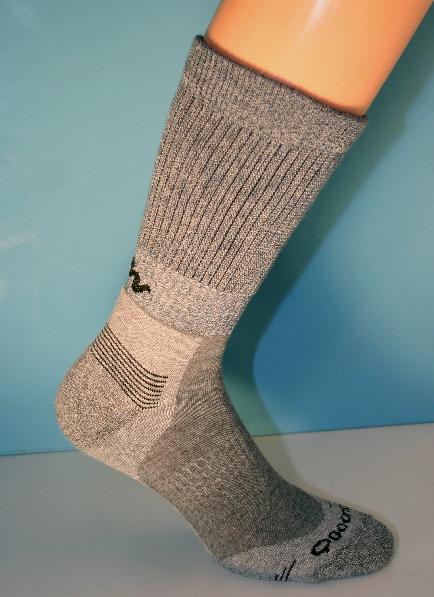

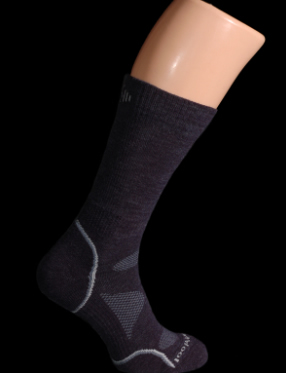

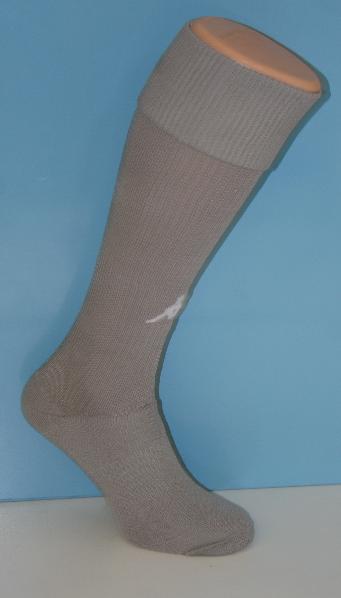

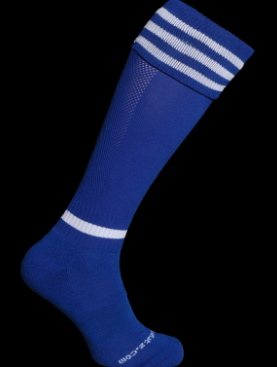

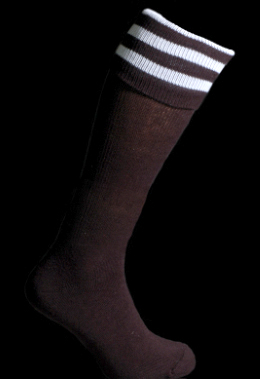

Socks and tights with reciprocated heel.

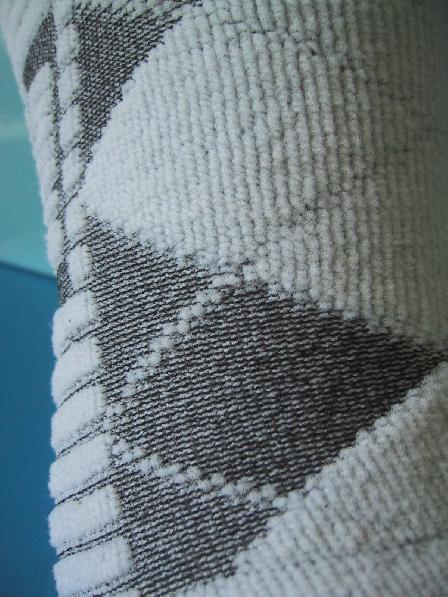

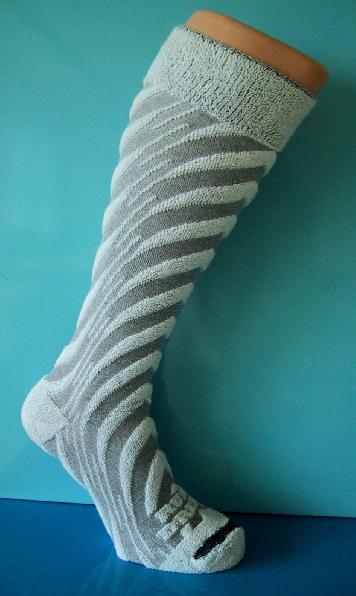

Possibility to make socks and tight in plain stitch, sandwich terry, selected terry with selection needle-needle without the replacement of any mechanical part but using only the program.

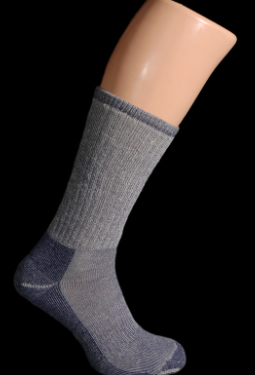

Socks in normal terry.

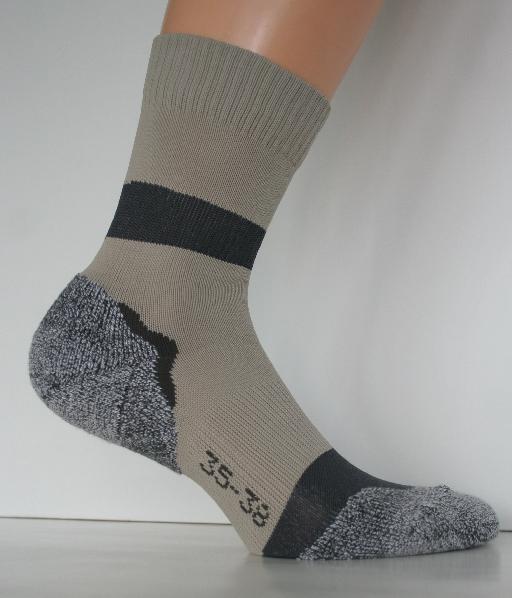

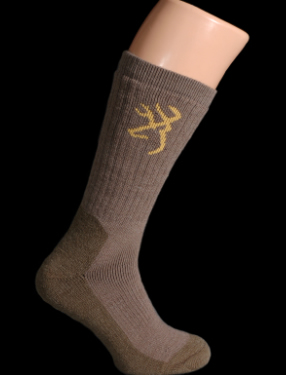

Socks in terry or plain stitch with 5 colors per course plus the ground also in the elastic.

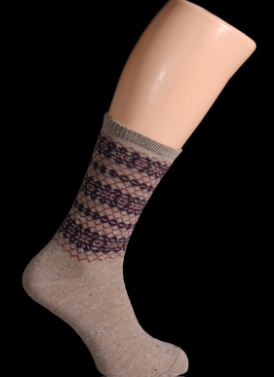

Plain stitch with 5 colors plus the floating yarn and the tuck stitch
Possibility to have 15 different colors in the same socks including the elastic selection.
3D socks, 180° reversed toe, right and left socks, heel and toe with 2 colors, high heel and Y heel.
Selected terry in the heel
Possibility to have socks with 2 elastic bands in 2 different colors
Single or double welt with pattern.
Maximum speed: 250 RPM in plain stitch
Diameter: 4.1/2 "
N° of needles: 84 – 96 gg: 6
108 – 120 : gg 24
132 - 136 – 144 – 156 : gg 36
200 : gg 36
OPTIONALS
Classic Linking Device for the automatic toe linking
BTSR Device
IRO or LGL Device
Antitwist
