TECHNICAL SPECIFICATIONS
Single cylinder 1 feed machine.
8 yarn fingers for the main feed.
6 groups of yarn fingers for the patterns formation. Independent elastic yarn finger.
Machine with 8 groups needle by needle selection.
Independent adjustment of ground stitch and heel through step motors.
Electronic adjustment of elastic feeder.
Control for the recovery of 4 independent heel yarn.
Increase of the speed in the heel and toe phases through an increase and decrease of the needles.
Cylinder and dial are moved by independent co-axial motors.
The system deals and controls with the maximum precision both motors, so creating the ideal synchronism of both phases of the edge loading and unloading.
The cutter-saw can be varied in speed in order to obtain the best lenght ot the yarns cut. Possibility to completely stop the dial in any cycle phase.
The sinker cover-assisted in any phase of the sock cycle.
Electronic panel with the possibility to store a full range of sock models and patterns.
Possibility to save the sock in any electricity breakdown.
Possibility to do the automatic zeroing in any phase of the cycle.
Electronic control of each raising cams through sensor.
PERFORMANCE SPECIFICATIONS

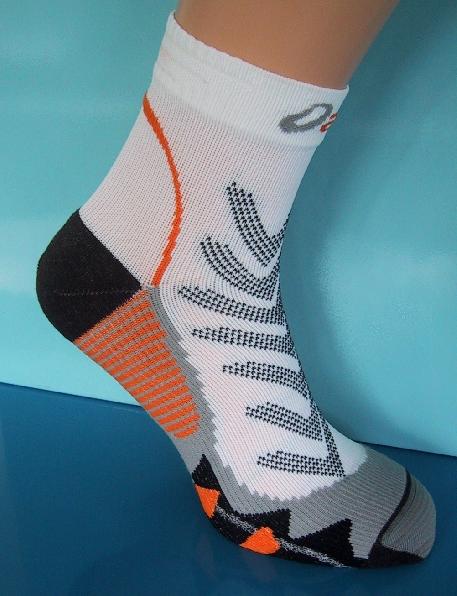

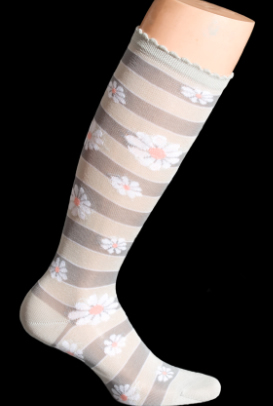

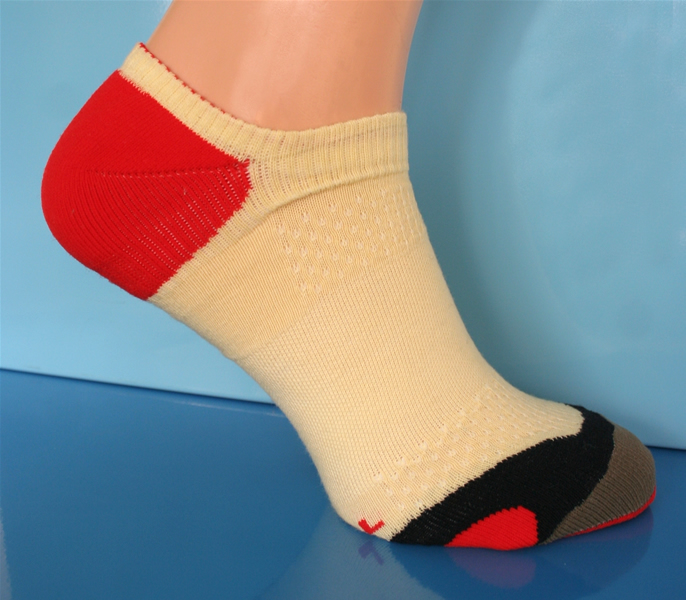

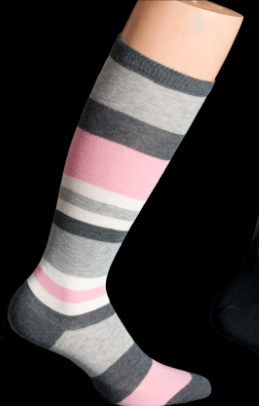

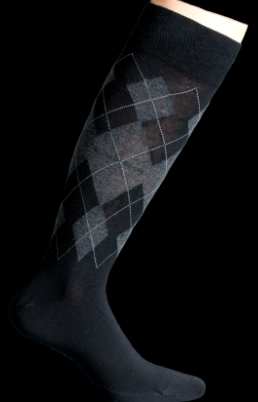

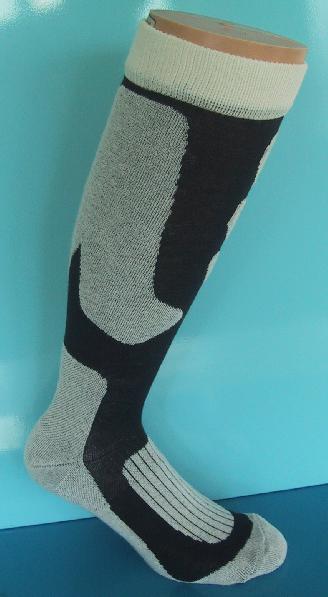

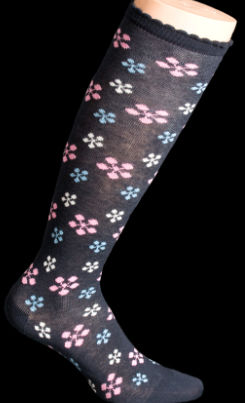

Socks and tights production with reciprocated heel. Socks with terry and plain stitch for a maximum of 6 colours per course plus the ground also in the elastic. Plain stitch with 6 colours plus floating yarn or tuck stitch.

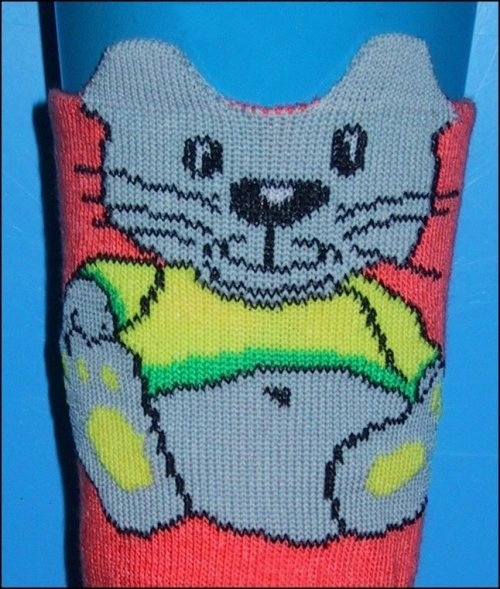

Possibility of 18 different colours on the same socks including the elastic selection. Possibility to have tridimensional patterns. Single or double welt with pattern.
Maximum speed: 250/300 RPM in plain stitch.
Diameter: 3.1/4" - N° of needles: from 72 to 144
Diameter: 3.3/4" - N° of needles: from 96 to 220

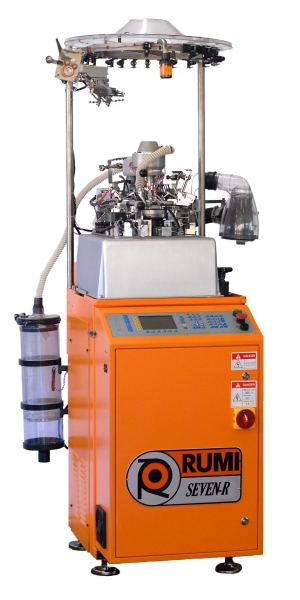

The model SEVEN-R is available also in the version "SD" which allows to make socks in selected terry sinker by sinker through 1 selection group on 4 levels.
OPTIONALS
Device for the automatic toe linking
BTSR Device
IRO or LGL Device
Antitwist
