PRODUCING CHARACTERISTIC

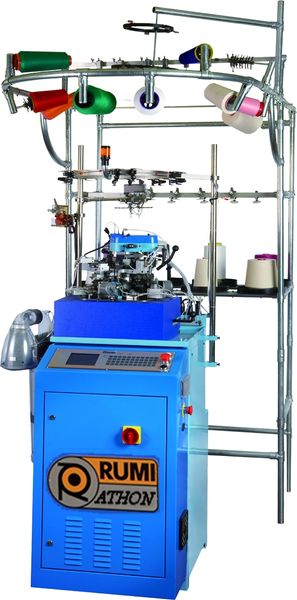

Single cylinder machine, drumless, for the manufacturing of socks and tights with true heel in transfer stitch.
Integral electronic programming of both sock model and pattern by means of the compatible PC and possibility of modifies by means of the keyboard.
Microprocessor control equipment with the capacity to store a full range of sock models and patterns, to display machine menus in 6 different languages, to signal possible errors and hardware self-diagnostic on the machine's display.

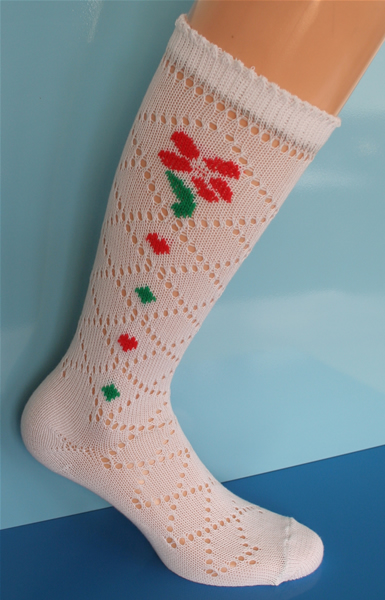

Possibility to have socks with Single or Double welt. Floating yarn or tuch stitch. Socks with different transfer patterns.
Y formation of the heel and the toe.
Horizontal stripes up to 6 colors from the ground color.
Needle-needle selection for the production of electronic patterns with yarnfingers programmable needle by needle, of which 6 for the pattern formation, for a maximum of 3 colors per course plus the ground color.
Elastic feeder and mesh adjustment made by step motors.
TECHNICAL SPECIFICATIONS
Diameter: 3.1/4" e 3.1/2"
N. of needles: from 54 to 120
Maximum Speed: 180 RPM
OPTIONAL DEVICE
IRO Feeding. BTSR Device.
| Needles Diameter | 3.1/4" | 3.1/2" |
| N° of needles available | 54-60-66: Gauge 6 | 76-84: Gauge 6 96-120: Gauge 24 |
